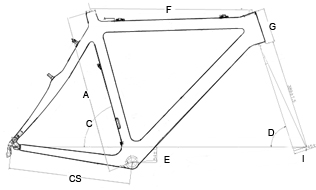

CX Geometry & Build Specifications
  Size S MĀ  L XL
A Seat Tube Length(cm) 48 52 55.5 58
  Wheel Size 700c 700c 700c 700c
C Seat Tube Angle (degrees) 74.5 74.5 74 74
D Head Tube Angle (degrees) 72 72 72 73
E BB Drop (mm) 55 55 55 55
F Top Tube (cm) 51.5 54 56 58.5
G Head Tube Length (mm) 100 110 120 150
CS Chainstay Length (mm) 430 430 430 430
I Fork Rake 45 45 45 45





































Shimano Build Specifications

Ultegra Di2 6770 Performance
Headset FSA Integrated FSA Integrated
Handlebar FSA Energy FSA Gossamer
Stem FSA SLK FSA OS190
Bar Tape Velo Cork Velo Cork
Saddle Prologo Scratch Ti Selle Italia Carbonio
Seat Post FSA SLK Carbon 31.6 FSA SL250 31.6
Front Derailleur Ultegra 6770 Ultegra 6800
Rear Derailleur Ultegra 6770 Ultegra 6800
Shifters Ultegra 6770 Ultegra 6800
Double Crankset FSA SLK Cross FSA Gossamer Cross
Bottom Bracket FSA Mega Exo FSA Mega Exo
Cassette Ultegra Shimano 6800
Chain Ultegra FSA
Brakes FSA Energy FSA Energy
Wheelset Easton EA70 Easton EA OE
Tires Maxxis Raze CX Kenda Kross
Price $3600 $2500



SRAM Build Specifications

SRAM Pro SRAM Performance
Headset FSA Integrated FSA IntegratedĀ
Handlebar FSA Energy FSA Wing
Stem FSA SLK FSA SLK 31.8
Bar Tape Velo Cork Velo Cork
Saddle Prologo Scratch Ti Selle Italia Carbonio
Seat Post FSA SLK Carbon 31.6 FSA SL250 31.6
Front Derailleur Force Apex
Rear Derailleur RED Rival
Shifters Force Apex
Double Crankset FSA SLK Cross FSA Omega
Bottom Bracket FSA EVO386 FSA ME
Cassette SRAM 1070 10s SRAM 1050
Chain SRAM 1071 10s FSA
Brakes FSA Energy FSA Energy
Wheelset Easton EA70 Easton EA Wheels
Tires Maxxis Raze CX Kenda Kross
Price $3200 $2300

Choice of Maxxis Raze CX, Mimo CX or Mud CX tires.
Pricing and specifications subject to change and availability.
