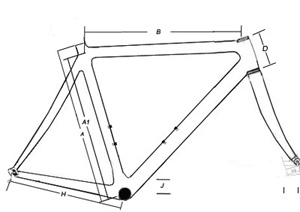

Zenith Geometry & Build Specifications
Size XS S M L XL XL2
Seat Tube Length- cm (center to top) 43 51 54 56 58 61
Seat Tube Length (center to center) 38 45 48 50 53 55
Wheel Size 700c 700c 700c 700c 700c 700c
Seat Tube Angle (degrees) 75 74 74 74 73 73
Head Tube Angle (degrees) 71.5 72.5 73 73.5 73.5 74
BB Drop (mm) 72 72 70 70 70 68
Top Tube (cm) 49.7 53.5 54.7 56 58.3 59.7
Head Tube Length (mm) 110 120 130 155 180 200
Chainstay Length 407 407 407 407 407 407
Fork Rake 45 45 45 45 45 45
evolve_120







































Shimano & SRAM Build Specifications

Shimano 5700 SRAM Rival/Apex
Headset FSA Integrated FSA Integrated
Handlebar FSA Omega FSA Omega
Stem FSA OS-190  FSA OS-190
Bar Tape Velo Cork Velo Cork Choice of colors: Black, Red, White, Yellow, Blue
Saddle Prologo Nago Evo T2.0 Prologo Nago Evo T2.0 Women's saddle: Terry Butterfly
Seat Post FSA SL-250 31.6 FSA SL-250 31.6
Front Derailleur 105 5700 Apex
Rear Derailleur Ultegra 6800 Rival
Shifters 105 5700 Apex
Double Crankset FSA Gossamer FSA Gossamer Choice of Compact or Standard crankset
Bottom Bracket FSA Mega Exo FSA Mega Exo
Cassette 105 5700 SRAM 1050 10s
Chain 105 5700 SRAM 1031 10s
Brakes FSA Gossamer FSA Gossamer
Wheelset Easton Road Easton Road
Tires Michelin Lithion 2 Michelin Lithion 2 Choice of colors: Red, yellow, blue, dark grey
Price $1999 $1999

Pricing and specifications subject to change and availability.
